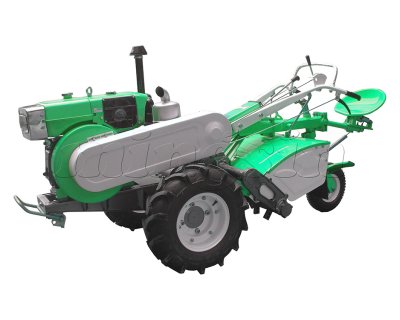

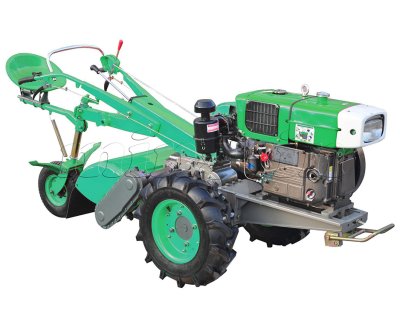

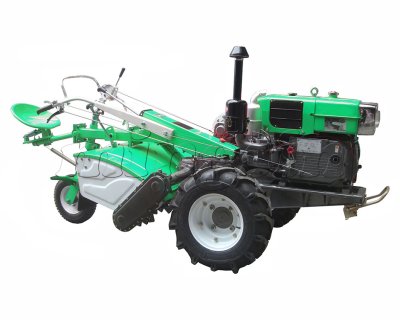

GN181/GN201 Microtractor Motocultivador
GN181/GN201 microtrator motocultivador / power tiller is very suitable for use in paddy fields, dry fields, orchards, vegetable gardens and hilly land with a little inclination. It can be used for plough, rotary tilling, harrowing in paddy fields, harvesting, drilling, ditching, transportation and etc. If suitable farm implements or accessories are attached. In addition, it can also be extensively used as a stationary power source for small scale drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling, fodder cutting and so on.
Engine Power: 18HP / 20HP Diesel Engine
Transmission: Gear-driven, multi-speed
Function: Plowing, tilling, weeding, and transportation
Application: Suitable for small and medium-sized farms, orchards, vineyards, and hilly terrain
The GN181/GN201 Microtractor Motocultivador
The GN181/GN201 Microtractor Motocultivador is a powerful and versatile agricultural machine designed to meet the needs of modern farmers. Equipped with an 18HP or 20HP diesel engine, it delivers strong performance for various farming operations, including plowing, soil preparation, and crop management. Its compact and maneuverable design allows for easy operation in different terrains, making it ideal for small and medium-sized farms, orchards, and hilly areas. With a durable structure and high efficiency, the GN181/GN201 is a reliable choice for farmers seeking a cost-effective solution for agricultural tasks.
Key Features
High-Power Diesel Engine – Available in 18HP and 20HP versions for enhanced performance and fuel efficiency.
Multi-Function Capability – Suitable for plowing, tilling, weeding, seeding, and even transportation when equipped with a trailer.
Gear-Driven Transmission – Ensures smooth operation with multiple speed options for different farming tasks.
Compact and Maneuverable Design – Easy to operate in narrow fields, orchards, and rugged terrains.
Adjustable Handlebar – Ergonomic and adjustable for better control and operator comfort.
Heavy-Duty Build – Constructed with high-quality materials for durability and long service life.
Fuel-Efficient & Low Maintenance – Designed for optimized fuel consumption and ease of maintenance.
Technical Specifications:
Model of Power Tiller | Unit | GN-181 | |
Structure weight | Without rotavator | kg | 380 |
With rotavator | 550 | ||
Working weight (with rotavator) | kg | 605 | |
Turning speed of rototilling shaft | rpm | 324/406 | |
Overall dimensions (L*W*H) | mm | 2950 x 980 x 1240 | |
Number of blades | PCS | 24 | |
Rototilling width | mm | 680 | |
Type of tractor | Single axle, dual-purpose for both traction & drive | ||
Travelling speed | Forward | Km/h | 2.18, 3.87, 6.5, 8.06, 14.31, 24.03 |
Reverse | 1.72, 6.36 | ||
Type size | 6.00-12 | ||
Wheel track | mm | 810, 750, 690, 570(normally use 810) | |
Min. ground clearance | mm | 210 | |
Min. turning radius | m | 1.1(with no rotavator) | |
Model of engine | ZS1110N | ||
Type of engine | Horizontal 4-stroke | ||
Bore x stroke | mm | 105*115 | |
Total displacement | L | 0.9959 | |
Compression ratio | 17:1 | ||
Turing speed of crankshaft | rpm | 2200 | |
1-hour rated output | KW/hphp | 13.34/18.15 | |
12-hour rated output | KW/hp | 12.13/16.5 | |
Specific fuel consumption | g/kw.h | ≤246.2 | |
Specific lube oil consumption | g/kw.h | ≤2.00 | |
Cooling mode | Condenser (Radiator) | ||
Main farm implements (optional) | Anti-skid steel wheel Model 100-640 Double-furrow plough Model 1LS-220 | ||
