GN151 China diesel power tiller is of dual-function type that can be used as a means of traction as well as drive. It is featured by its simple and compact structure, good reliability, long service life, easy operation, ample output, light weight and good cross-country ability.
GN151 power tiller / walking tractor is more powerful and efficient than GN121. It is very suitable for use in paddy fields, dry fields, orchards, vegetable gardens and hilly land with a little inclination. It can be used for plough, rotary tilling, harrowing in paddy fields, harvesting, drilling, ditching, transportation and etc. If suitable farm implements or accessories are attached. In addition, it can also be extensively used as a stationary power source for small scale drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling, fodder cutting and so on.

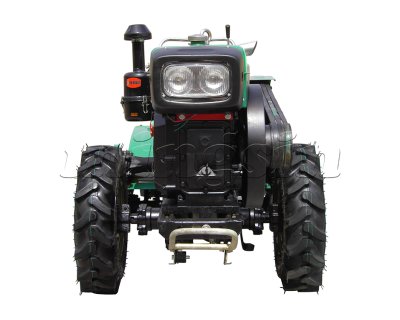

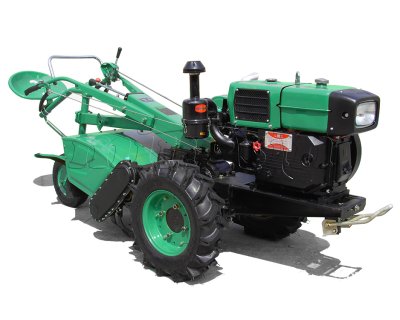

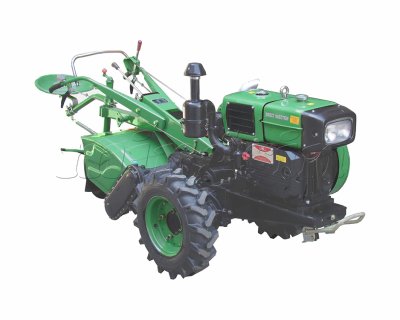

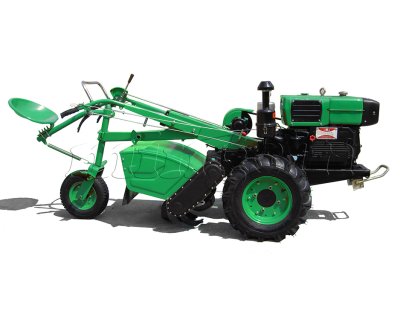

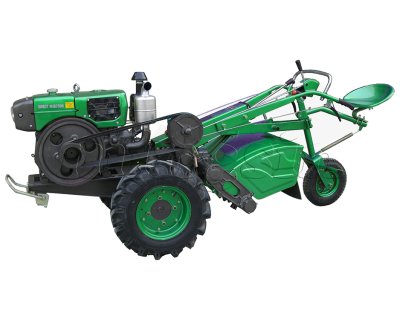

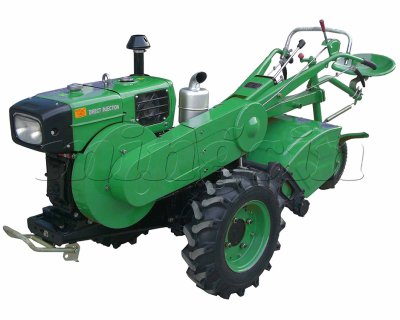

The Best China Diesel Power Tiller Model GN151
The GN151 Power Tiller is a highly efficient and versatile agricultural machine designed for small and medium-sized farms. Equipped with a powerful 15HP diesel engine, this tiller is ideal for plowing, harrowing, weeding, and other soil preparation tasks. Its compact design and maneuverability make it suitable for various terrains, including paddy fields, dry lands, and hilly areas. The GN151 is a reliable choice for farmers looking for a cost-effective and durable solution for their agricultural needs.
Key Features
l Powerful Engine – 15HP diesel engine provides strong performance and fuel efficiency.
l Versatile Applications – Suitable for plowing, tilling, weeding, and ridge-making.
l Adjustable Handlebar – Ergonomic design with adjustable height for comfortable operation.
l Durable Build – Robust steel frame ensures longevity and reliability.
l Multi-Speed Transmission – Offers various speed options for different farming tasks.
l Fuel Efficiency – Designed to optimize fuel consumption while maintaining high performance.
l Easy Maintenance – Simple structure for convenient servicing and spare part replacement.
Technical Specifications:
Model | Unit | GN151 | |
Structure weight | Without rotavator | kg | 360 |
With rotavator | 470 | ||
Working weight (with rotavator) | kg | 513 | |
Turning speed of rototilling shaft | rpm | 199/250 | |
Overall dimensions (LxWxH) | mm | 2950 x 980 x 1240 | |
Number of blades | PCS | 18/20 | |
Rototilling width | mm | 600 | |
Type of tractor | Single axle, dual-purpose for both traction & drive | ||
Travelling speed | Forword | Km/h | 1.55, 2.76, 4.63, 5.74, 10.19, 17.11 |
Reverse | 1.22, 4.53 | ||
Type size | 6.00-12 | ||
Wheel track | mm | 810, 750, 690, 570(normally use 810) | |
Min. ground clearance | mm | 210 | |
Min. turning radius | m | 1.1(with no rotavator) | |
Model of engine | ZS1100N | ||
Type of engine | Horizontal 4-stroke | ||
Bore x stroke | mm | 100*115 | |
Total displacement | L | 0.903 | |
Compression ratio | 20:01 | ||
Turing speed of crankshaft | rpm | 2200 | |
1-hour rated output | KW/hphp | 12.13/16.5 | |
12-hour rated output | KW/hp | 11.03/15 | |
Specific fuel consumption | g/kw.h | ≤245 | |
Specific lube oil consumption | g/kw.h | ≤2.04 | |
Cooling mode | Condenser (Radiator) | ||
Main farm implements (optional) | Anti-skid steel wheel Model 100-680 | ||
