l Engine: Laidong 4L22 engine compliant with EuroⅡ and Euro ⅢA emission standards.
l Transmission: 8F+8R synchronizer shuttle shift for smooth and easy gear changes.
l Hydraulics: Optional single/dual hydraulic outputs and Category I suspension for versatile tool compatibility.
l Certifications: OECD and EC certified for quality and safety.
l Applications: Ideal for farming, landscaping, greenhouse operations, and more.
l PTO Speed: 540/720/1000 rpm.
l Dimensions: 3000×1440×1660 mm.
l Weight: 1744 kg.

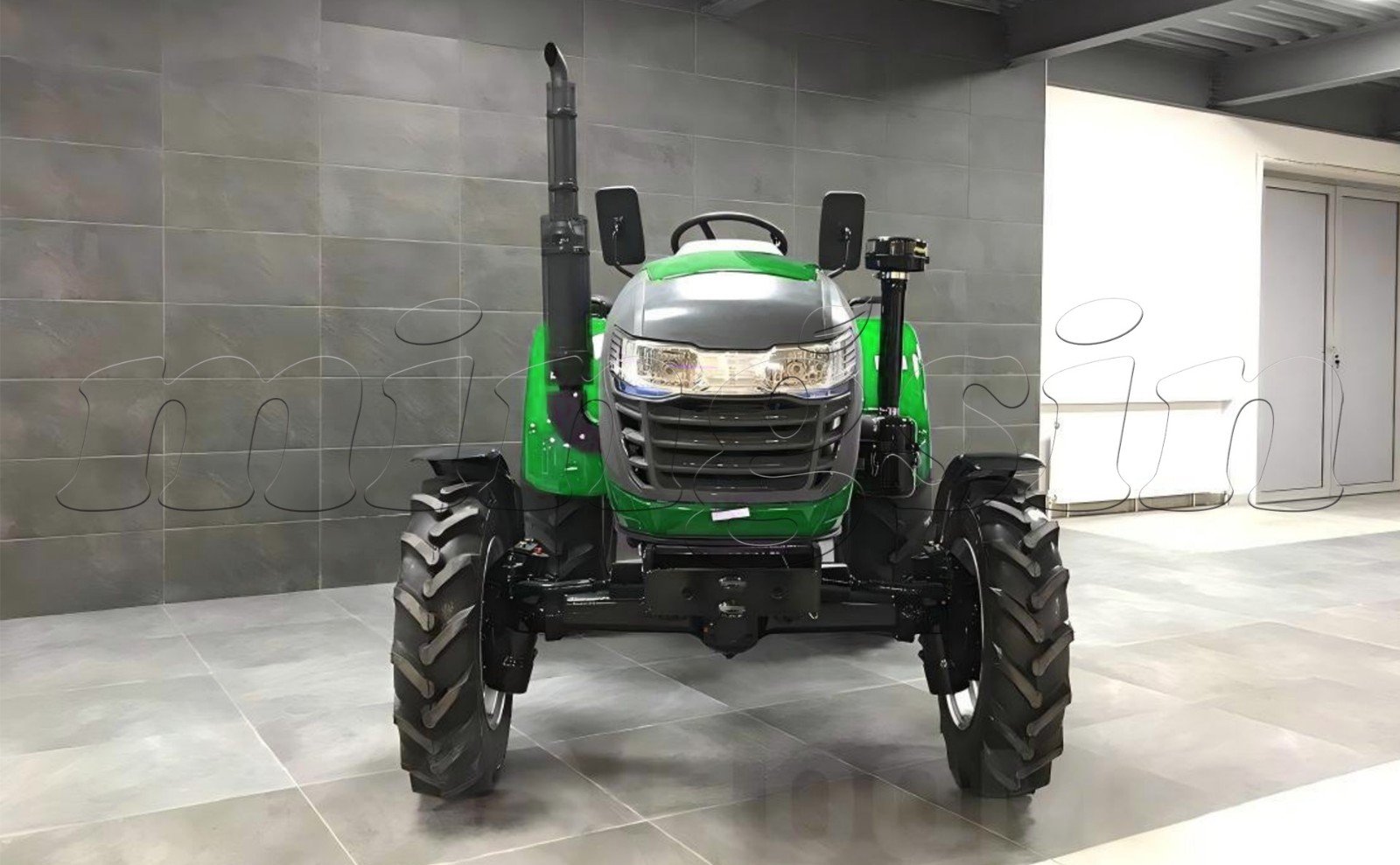

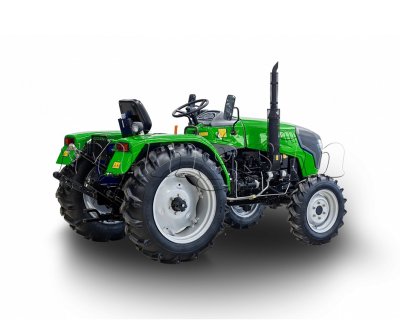

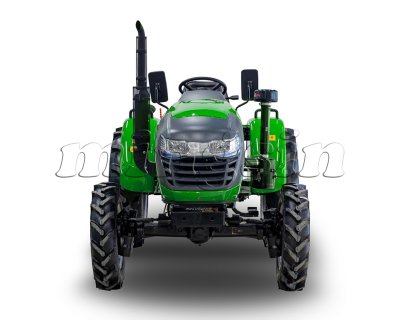

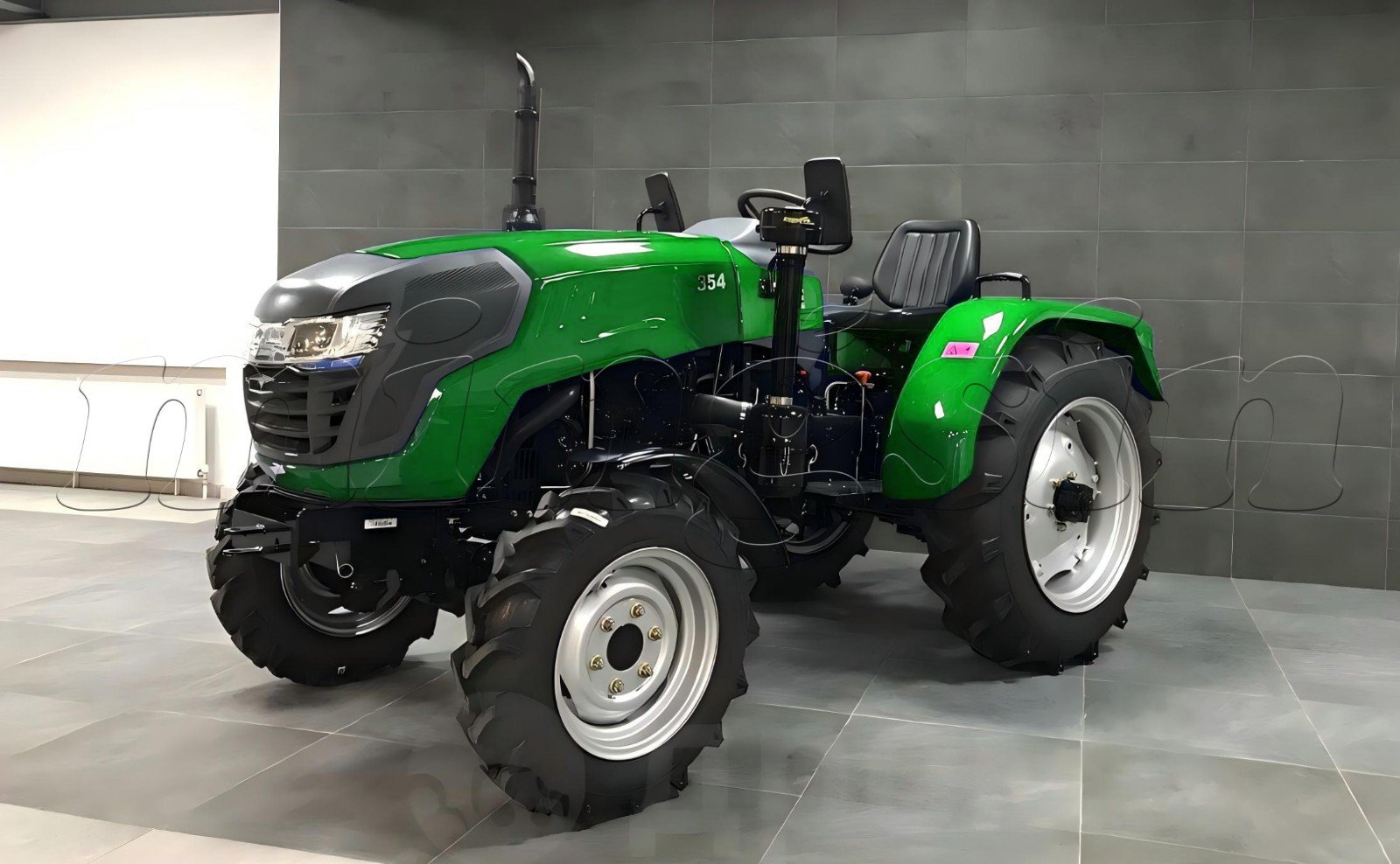

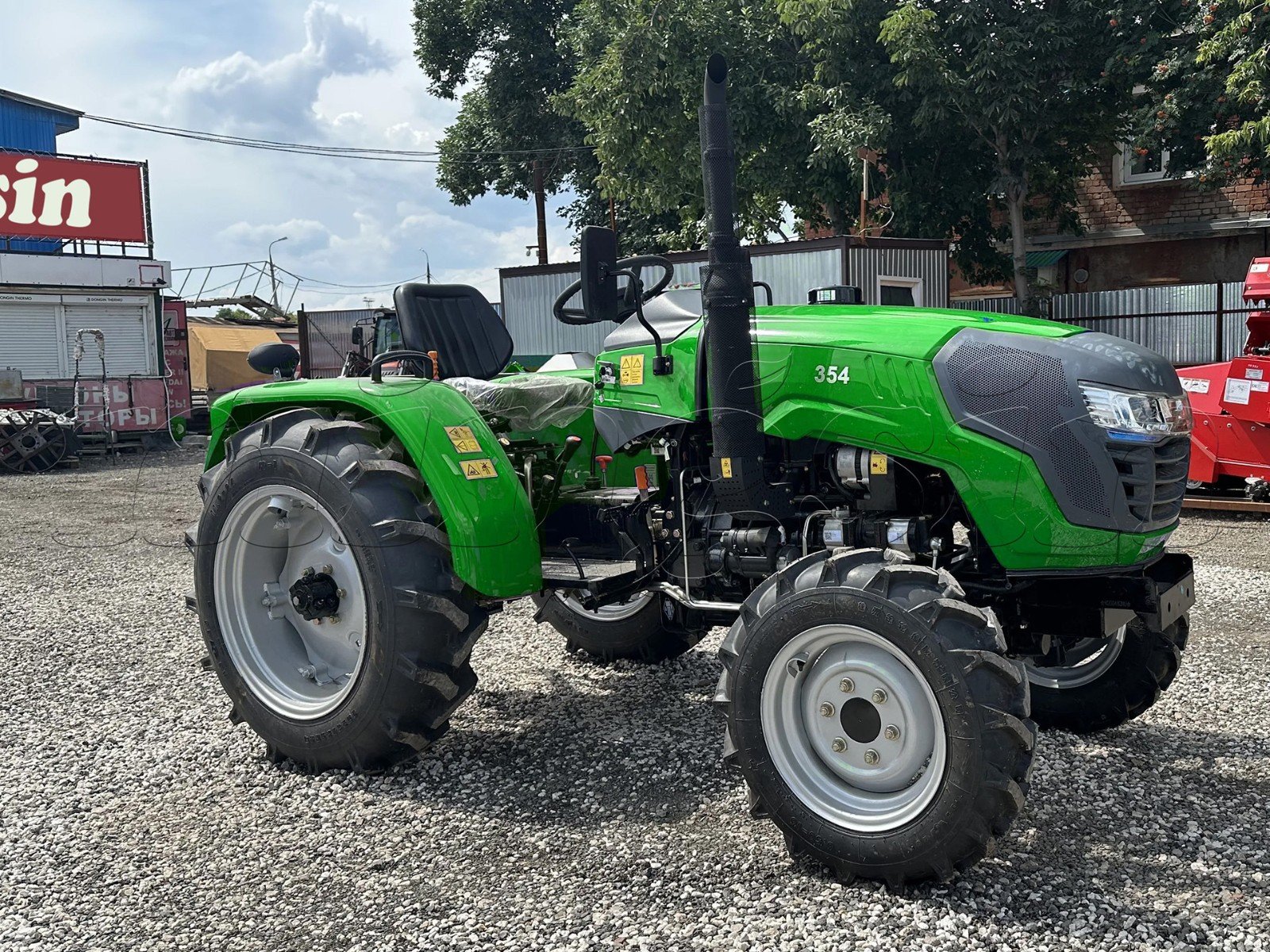

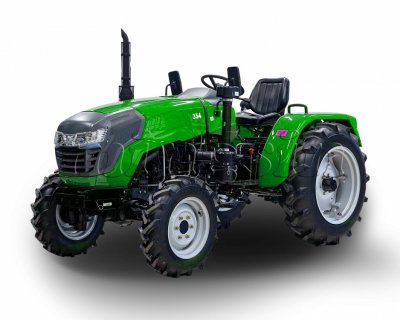

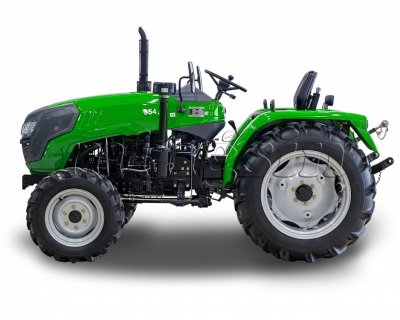

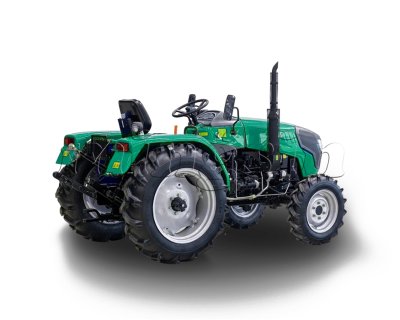

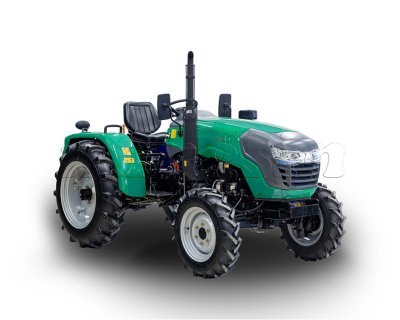

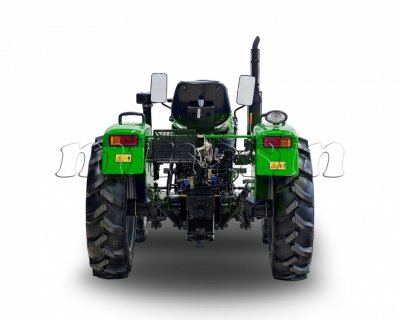

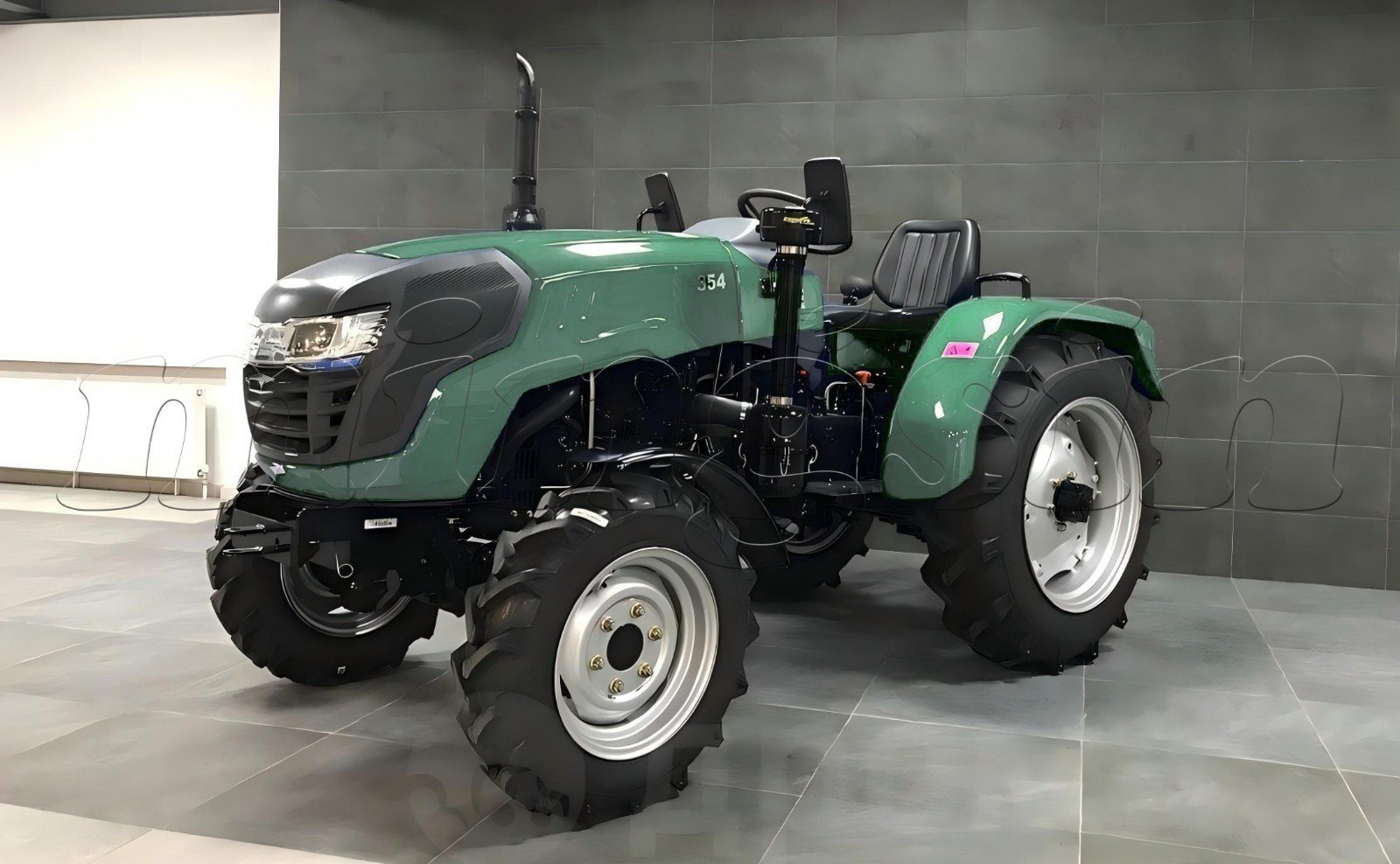

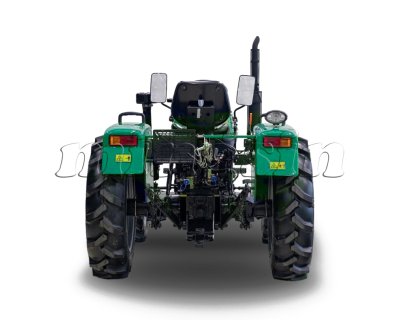

The Lovol TE354 Tractor is a 35-horsepower, four-wheel-drive agricultural machine designed to deliver high efficiency and versatility across various applications. Powered by the reliable Laidong 4L22BT engine, it ensures robust performance with a torque reserve coefficient of ≥25% and traction up to 8.5 KN. The 8F+8R synchronized shuttle shift transmission allows for seamless gear transitions, enhancing operational ease. Its ergonomic design includes a flat floor structure and side-mounted control levers for improved comfort. The TE354 is compatible with a range of implements, making it ideal for tasks in farming, lawn maintenance, gardening, and greenhouse operations. Certified by OECD and EC standards, this tractor combines functionality with compliance to international quality benchmarks.
· Model: Laidong 4L22BT
· Horsepower: 35 HP
· Displacement: 2.156 L
· Torque: ≥124 N·M
· Emission Standards: EuroⅡ and Euro ⅢA compliant.
· Gear Shift: 8 forward + 8 reverse synchronizer shuttle shift.
· Speed Range: 1.97–29.67 km/h.
· PTO Speed: 540/720/1000 rpm (adjustable for diverse implements).
· Lifting Capacity: 6 kN.
· Hydraulic Flow Rate: 24 L/min.
· Valves: 2 valves for precision control.
· Three-Point Linkage: Category I standard.
· Size: 3558×1550×2450 mm (L×W×H).
· Wheelbase: 1805 mm.
· Ground Clearance: 330 mm.
· Turning Radius: 3.3 ± 0.2 m.
· Tire Configuration: Front 7.5-16 / Rear 12.4-24.
· OECD and EC certified for international quality and safety standards.
· Multi-Functional: Compatible with farming, landscaping, and greenhouse tools.
· Operator Comfort: Ergonomic design with a focus on ease of use.
· Durability: Robust construction for long-term reliability.
Technical Specifications:
Model | TE354 | ||
Type | Wheeled Type,4WD | ||
Dimensions of Tractor (mm) | Length | 3000 | |
Width | 1440 | ||
Height | 1600 | ||
Tread | Front Wheel | 1180 | |
Rear Wheel | 1140 | ||
Wheel Base | 1820 | ||
Min. Ground Clearance | 310 (the bottom of front axle) | ||
Min.operational Mass (kg) | |||
Engine | Model | 4L22BT | |
Type | Vertical,water cooled and 4-stroke | ||
Rated Power (hp) | 35 | ||
Displement | 2.156L | ||
Torque | ≥124N*M | ||
Fuel | Diesel | ||
Tire | Front Wheel | 260/70R16 | |
Rear Wheel | 320/85R24 | ||
Clutch | dry-friction,single disc and constant engagement | ||
Steering | Hydraulic Power Steering | ||
Transmission Box | 8F+8R | ||
Hitching Type | Rear mounted,3-pointlinkage,Category I | ||
PTO | Type and Rev. (r/min) | Rear mounted,non-independent,540/1000 | |
Spline Size | I35 Rectangle Spline with 6 teeth | ||
Beifute Company has established an ERP management system and advanced performance testing and chemical testing centers. It has introduced specialized equipment such as spectral analyzers, pressure testing benches, hardness machines, tensile testing machines
Beifute Company has established an ERP management system and advanced performance testing and chemical testing centers. It has introduced specialized equipment such as spectral analyzers, pressure testing benches, hardness machines, tensile testing machines
■ Equipped with 4 cylinder engine,direct injection engine, start convenient,low fuel consumption,high traction, high reliability and high coefficient of torque reserve. ■ With heavy-duty chassis,high traction,and high double-speed PTO shaft,it works more efficiency. ■ Transmission gears 8F+2R ,optional reversing device 10F+2R,featuring reasonable speed-matching,high working efficiency,and good fuel economy in all kinds of farmland homework and transportation. ■ Equipped with the side operation control device and the shift sleeve device,featuring convenient,comfortable,and reliable control. ■ Reinforced dual-speed power take-off, featuring the wide range of optional machinery and tools and high reliability. ■ Hydraulic lifting device adopted position control and float control, easy to operate and provides reliable performance. ■ The complete vehicle adopts the optimized ergonomic design to improve the driver’s safety feeling,and the comfort to control. ■ A new generation of steamline hood,with beautiful and elegant appearance,conforming to the safety,dust-proof,noise-reduction,heat-removal and other performance requirements. ■ Light and better sealed, give it high performance in paddy field farming. ■ Provide EC,EPA,GOST certification model.

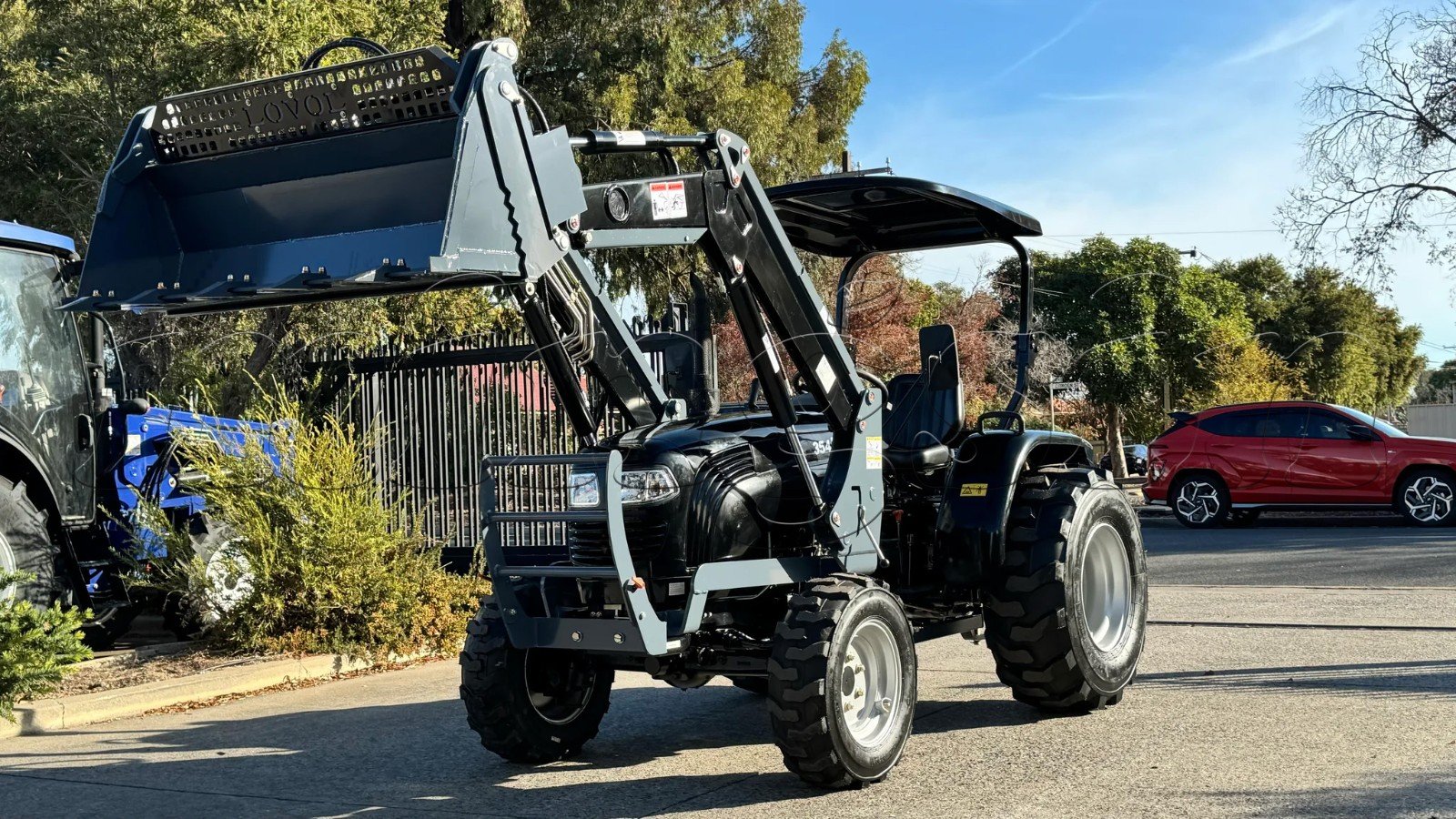

The TY350/TY354 Tractor from the Mingsin is a highly popular choice for small property owners and hobby farmers who need a compact, reliable tractor for tasks that can’t be handled manually. Perfectly suited for light-duty farm work, the TY350/TY354 is equipped with a front-end loader featuring a versatile 4-in-1 bucket, ideal for cleaning and maintaining your property with ease. Powered by a proven 3-cylinder diesel engine, the TY350/TY354 delivers dependable performance and straightforward serviceability. Whether you're clearing land or tackling other chores, this tractor is built to make your work easier and more efficient.
Model TY300 and TY304 compact tractor boasts a reliable, Laidong diesel engine, a dry-friction, single-disc, dual-stage clutch for smooth operation, and constant-mesh gear engagement. It features responsive hydraulic steering and a Category I/II three-point hitch. The rear-mounted, semi-independent PTO offers speeds of 540/760 RPM or 540/1000 RPM, and includes dual hydraulic outputs for versatile implement use.
Find high-performance China mini tractors that are ideal for a variety of farming needs. Compact, reliable, and cost-effective solutions for small-scale agricultural operations.
