Powerful & Eco-Friendly: High-performance Yangdong 90HP diesel engine balances power with lower emissions.
Versatile Applications: Equipped with a Category II 3-point hitch and loader compatibility for farming, ranching, and logistics.
Smooth Transitions: 12F+12R shuttle transmission for seamless speed changes (Note: 8F+2R standard spec also mentioned).
All-Terrain Capability: Selectable 2WD/4WD drive train and hydraulic power steering for superior maneuverability.
Operator-Centric: Ergonomic flat-floor cabin design with vibration-damped seating ensures comfort during long hours.
Robust Capacity: Handles demanding tasks with over 16kN lift capacity, ideal for plowing, mowing, and transport.

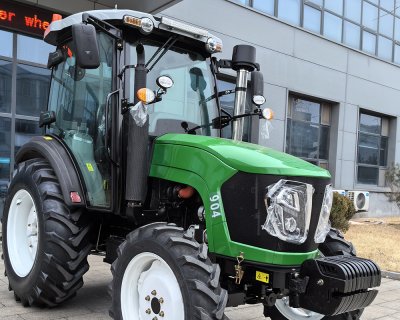

Mingsin TB904 Utility Tractor
This tractor is built with high stability and good performance with easy driving comfort. It is equipped with 12F+12R with shuttle with different speed to match different work speed request. The control lever is within easy reach to make the job easier and driving more comfortable. Flat floor increases the working space enough wide and work easier. A high-performance Euro V-compliant agricultural tractor powered by a turbocharged 90HP diesel engine, designed for versatility across farming, ranching, and heavy-duty logistics. Its 12F+12R shuttle transmission enables seamless speed transitions, while the 2WD/4WD drive train and hydraulic steering system ensure adaptability to diverse terrains.
Key features include:
l Enhanced Productivity – Equipped with a Category II 3-point hitch for implement versatility, loader compatibility, and customized tire configurations (e.g., 9.5-24/14.9-30).
l Operator-Centric Design – Flat-floor cabin layout with ergonomic controls and vibration-damped seating for extended operational comfort.
l Emission-Efficient Performance – Euro V engine technology balances robust turbocharged power with reduced environmental impact.
l Task-Optimized Capabilities – Ideal for plowing, mowing, material transport, and livestock operations supported by a 16kN lift capacity.
l Engine: Equipped with a 4-cylinder, water-cooled, 4-stroke diesel engine (Model 4105) delivering 66.15 kW at 2400 rpm.
l Transmission: Offers 12 forward and 12 reverse gears.
l Clutch: Dual-stage clutch for smooth operation.
l Steering: Hydraulic power steering ensures easy maneuverability.
l PTO: Semi-independent PTO with speeds of 540/1000 rpm, featuring a F35 rectangle spline with 6 teeth.
l Dimensions: Measures 4050 mm in length (including front ballast), 1830 mm in width, and 2660 mm in height (to the exhaust vent).
l Weight and Traction: Structural weight is 2825 kg.
l Tires (optional):8.3-24/16.9-30;12.4-24 18.4-30; radial tire 280/85R20,380/85R30.
l Additional Features: Includes a 3-point linkage suspension, oil-immersed brakes, adjustable wheel tread, and optional features such as a cab with air conditioning, air brake for trailers, and front-end loader compatibility.
Engineered for optimal stability, operator-centric ergonomics, and fuel-efficient performance in demanding agricultural workflows.
Technical Specifications:
Model NO. | TB904 |
General Data | |
Tractor Power | 90hp |
Chassis Type | TB chassis |
Drive method | 4WD |
Overall dimension（L*W*H）mm | 4050×1830×2660 |
Wheel tread (mm) | front 1050,1150, 1250; rear1000~1300 |
Wheel base (mm) | 2010 |
Min Ground clearance (mm) | 390 |
Min service weight (kg) | 2825 |
Engine | |
Diesel engine | Yangdong 4105. China Emission Stage II, 4.087L |
Type | inline, direct injection, water cooled |
Intake method | turbocharged |
Engine power | 66.15kW/2400rpm |
Fuel | diesel |
Hydraulic system/working Part | |
Suspension type | three point linkage, CAT II |
Hydraulic output | dry type, dual stage |
Max traction power | ≥22.1kN |
Max lifting power | ≥16kN |
Rear PTO speed | 540/1000rpm |
PTO splines | 6 |
Travelling system | |
Steering | hydraulic steering |
Transmission | gearshift 12F+12R |
Clutch | dry type, dual stage |
Brake | oil-immersed |
Tire size | Optional 9.5-24/14.9-30; 8.3-24/16.9-30;12.4-24 18.4-30; radial tire 280/85R20,380/85R30 |
Theoretical speed | Forward: 2.46-32.73km/h |
