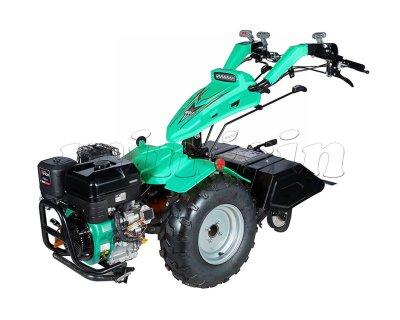

· Model: MX760
· Engine Power: B&S 420cc engine (other engines optional)
· Transmission Type: All-gear drive with direct power transmission
· Lamp: LED Lamp
· Stage Gears: 3 Forwards & 2 Reverse
· Wheel Size: 5.00-10
· Walking Speed:
Forward: 1.18, 2.76, 12.67 km/h
Reverse: 1.24, 2.91 km/h
· Handlebar: Adjustable in height and sidewise; can be oriented 180°
· Clutch Type: Dry clutch
· Differential Lock: With
· P.T.O.: 990 rpm at 3600 rpm of motor
· Tilling Scope: 66 cm in width; 15-25 cm in depth
· Tractor G.W./N.W.: 128/105 kg
· Tractor Carton Size: 107 x 72 x 81 cm
· Tiller Working Width: 65 cm
· Tiller Working Depth: 15 cm
Product Introduction:
The MX760 Tiller is a high-performance agricultural machine designed to enhance farming efficiency. Equipped with a robust B&S 420cc engine, this tiller ensures reliable power for various soil cultivation tasks. Its all-gear drive system with direct power transmission provides durability and consistent performance. The adjustable handlebar, capable of a 180° orientation, offers flexibility and ease of use, making it suitable for diverse farming environments.
Product Features:
· Powerful Engine: Fitted with a B&S 420cc engine, ensuring ample power for demanding tasks.
· Durable Transmission: All-gear drive system ensures longevity and efficient power transfer.
· Versatile Speed Options: Three forward and two reverse gears allow adaptability to various soil conditions and tasks.
· Adjustable Handlebar: Height and sidewise adjustments with a 180° orientation enhance user comfort and control.
· Effective Tilling Capacity: Offers a tilling width of 66 cm and depth adjustable between 15-25 cm, suitable for different cultivation needs.
· LED Illumination: Equipped with an LED lamp for improved visibility during low-light operations.
· Differential Lock: Includes a differential lock feature for better traction and maneuverability on uneven terrains.
Technical Specifications:
| MX760 Walking Tractor | |
| Engine power | B&S 420cc engine, other engines optional |
| Transmission type | gear driven |
| Start mode | recoil and electric start |
| Wheel specification | 21" snowhog tyre |
| Gear shift | 3F3R1 N |
| Hitch mode | 2 points hitch |
| Clutch mode | Dry clutch |
| Handlebar adjustment | up and down 7points, left and right 180° |
| Hicth bracket | one opertor could quick hitch the tractor and sweeper |
| Heat grip | with |
| Led lamp | with |
| Reflective sign | with |
| Differential lock | with |
| Power steering hydraulic disc brake | with |
| Rotary Tiller | |
| Working Width | 65cm |
| Working depth | 15cm |
Beifute Company has established an ERP management system and advanced performance testing and chemical testing centers. It has introduced specialized equipment such as spectral analyzers, pressure testing benches, hardness machines, tensile testing machines
Beifute Company has established an ERP management system and advanced performance testing and chemical testing centers. It has introduced specialized equipment such as spectral analyzers, pressure testing benches, hardness machines, tensile testing machines
The MX770 is a robust and versatile multi-functional machine powered by a 418CC diesel engine, featuring an all-gear drive transmission and 4 forward & 4 reverse gears. Its adjustable handlebar with 240° orientation and hydraulic disc brake for steering assistance ensure ease of operation. Ideal for various agricultural tasks, the MX770 offers reliable performance and adaptability.
Discover the 15HP Dongfeng type MX151D electric start power tiller, a powerful and versatile agricultural machine designed for plowing, tilling, and transportation. Its reliable engine, user-friendly operation, and durable structure make it an excellent choice for farmers.
As a flagship model in the heavy-duty class (400 kg category), the Mingsin brand model MX111D Two-wheel Tractor stands out with unparalleled versatility through its comprehensive range of compatible attachments. This workhorse features multiple PTO configurations - gear-driven, splined shaft, and dual belt-driven systems (engine/reducer pulleys) - enabling year-round agricultural operations across all seasons through modular implement integration.
Good Description: The Mingsin Brand 8hp walking tractor is of dual-function type that can be used as a means of traction as well as drive. It is featured by its simple and compact structure, good reliability, long service life, easy operation, ample output, light weight and good cross-country ability. MX81 walking tractor is more powerful and efficient than MX61. And the gear-box is in horizontal type which may lead to better equilibrium ratio. It is very suitable for use in paddy fields, dry fields, orchards, vegetable gardens and hilly land with a little inclination. It can be used for plowing, rotary tilling, harrowing in paddy fields, harvesting, drilling, ditching, transportation and etc. if suitable farm implements or accessories are attached. In addition, it can also be extensively used as a stationary power source for small scale drainage and irrigation, sprinkling, grain threshing, cotton ginning, flour milling, fodder cutting and so on.
